VESSEL OPEN TYPE LIFEBOAT FOR LIFE-SAVING APPLIANCE
Overview
*The Totally enclosed Lifeboat/Rescue boat is manufactured with compliance with the(amendments to the SOLAS, 1974), MSC218.(82),MSC226.(82),MSC272.(85)and MSC274.(85).
*The hull/canopy of lifeboat is made of the fire reinforced plastic(F.R.P.—fire retardant ). The space between the inside and outside hull/canopy is filled with polyurethane foam which will supply sufficient buoyancy for the boat.
*The boat will be afloat with the help of the foam even the part of boat underneath the water damaged.
*The fully loaded boat will be selfrighted when the boat turn over to any angle. This type of boat is used for the life-saving and rescue on the sea.
Features
* Amendments to the international convention for the safety of safety of life at sea,1974.
* International life-saving appliance(LSA),code MSC.218(82),MSC.272(85).
*MSC.81(70),MSC.226(82), MSC.274(85)The resolution for maritime safety committee.
*Nation calibrate for F.R.P. Material.
*Approval:ABS,EC,DNV,BV &CCSETC...for Totally enclosed Lifeboat/Rescue boat
Types of lifeboat/ Rescue Boat and application
*Totally enclosed Lifeboat/Rescue boat or Gravitational collapse lifeboat,20-120 persons
*Free Fall Life Boat 12-36 persons
*Rescue Boat 6 persons
*Fast Rescue Boat 6-12 persons
*Inflated Fender/Rigid Fast Rescue Boat
*Each vessel Match lifeboat standard:
Totally enclosed Lifeboat/Rescue boat(Gravity type): one ship, two enclosed lifeboat with davit
Free Fall Lifeboat:One ship,one free fall lifeboat
*Application:CARGO VERSION,TANKER VERSION,MARINE OFFSHORE,PLATFORM ETC...

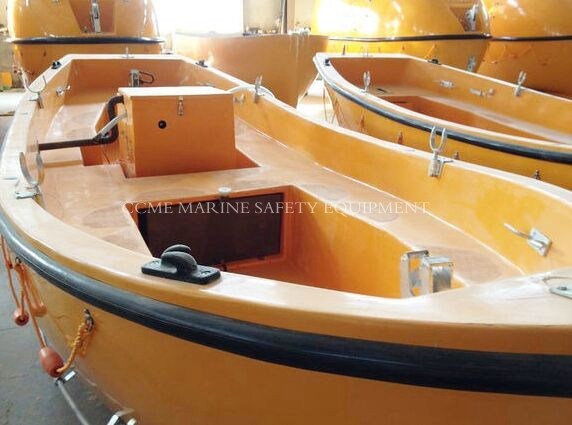

Products Details OF OPEN TYPE TOP LIFEBOAT
Model | 35K | 45K | 52K | 60K | 70K | 75K | 80K | |
Length | m | 3.55 | 4.55 | 5.28 | 6.08 | 7.12 | 7.53 | 8.02 |
Breadth | m | 1.60 | 1.86 | 2.10 | 2.10 | 2.35 | 2.55 | 2.65 |
Depth | m | 0.80 | 0.85 | 0.95 | 0.95 | 1.03 | 1.05 | 1.10 |
Hook distance | m | 2.83 | 3.80 | 4.50 | 5.30 | 6.00 | 6.50 | 7.00 |
Craft weight | kg | 695 | 770 | 1364(674) | 1320(715) | 1730(1329) | 1887(1475) | 2249(1645) |
Persons | P | 7 | 10 | 16(16) | 22(25) | 33(36) | 43(46) | 52(55) |
Full Load | kg | 1220 | 1520 | 2564(1874) | 2970(2590) | 4205(4029) | 5112(4925) | 6149(5770) |
Speed |
| ≥10km/h | ≥6 knots | |||||
Engine |
| ZS1100 | ZX2105C-1 | |||||
Power | HP | 15 | 24 | |||||
Rotate speed | rpm | 2200 | 1500 | |||||
Remark |
| Only used in inland river | The particulars in bracket is without engine | |||||
