Preamble
-The equipment is a self-contained compressed air breathing apparatus (SCBA).
-It is open-circuit type in that the exhaled air is released to the ambient atmosphere without being circulated in the breathing system
Functions
-It provides air for firemen to breathe and work in oxygen-deficient atmosphere or toxic environment
-It has been certified to protect firemen from chemical, biological, radiological and nuclear hazards
-It is equipped with advanced electronic technology to detect and monitor the working situation of the firemen donning with the SCBA.This enhances the wearer and the monitoring personnel to have a more accurate apprehension of the operational situation
Product description
-Positive Pressure Fire-Fighting Air Respirator is a new model of self supporting open respirator.
-RHZK positive pressure fire-fighting air respirator is a new model of self supporting open respirator, which is widely used in fire-fighting ,chemistry industry,fired boat,petroleum industry,smelt,mine and transportation.
It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke,pollution,hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.
-Air Breathing Apparatus/Self-contained breathing apparatus is easy to operate, can provide effectively respiratory protecting from toxic gases for operator who working in thick smoke, steam and oxygen deficiency hazardous atmosphere.
-Best Seller Model of Positive Pressure Air Respirator is RHZK5/30(5L),RHZK6/30(6L)
Technical parameters
|
Model |
Working pressure (MPa) |
Volume (L) |
Air Deposit (L) |
Using Time (min) |
Alarm Pressure (MPa) |
Weight (kg) |
Packing (mm) |
Notes |
|
RHZK5/30 |
30 |
5 |
1500 |
40-50 |
4-6 |
≤16 |
710×290×430 |
Steel air cylinder |
|
RHZK6/30 |
30 |
6 |
1800 |
50-60 |
4-6 |
≤18 |
710×290×430 |
|
|
RHZK6.8/30 |
30 |
6.8 |
2040 |
50-60 |
4-6 |
≤12 |
710×290×430 |
Carbon fibre air cylinder |
|
RHZK9/30 |
30 |
9 |
2700 |
80-90 |
4-6 |
≤16 |
710×290×430 |
|
|
RHZK6.8*2/30 |
30 |
6.8*2 |
2040*2 |
100-120 |
4-6 |
≤17 |
/ |
Double-cylinder breathing apparatus |

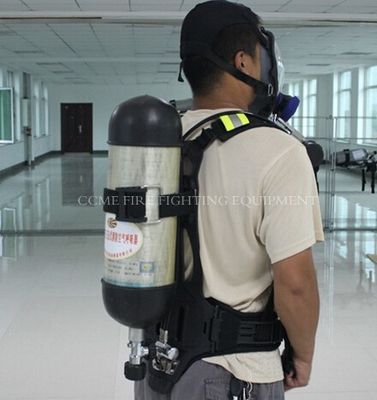

The SCBA positive pressure breathing apparatus contains parts as follows:
1.Mask: high transparency ,abrasive resistance, anti fog ,mathematic airtight,the material is silicagel which is not harmful to person.
2.Gas Cylinder:work pressure is 300Bar,the cylinder is very light,safety.
3.Baldric:the material is firefroof polyester fabric, and it is bilateral adjustable.
4.Pressure Gage:it can be watched in the dark.
5.Cylinder Valve
6.Pressure Reglator
7.Back Care
8.Air Supply Vavle
