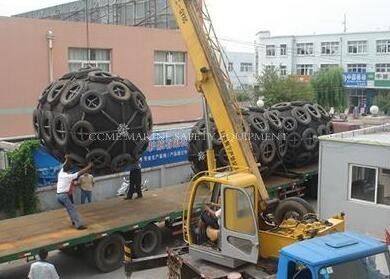

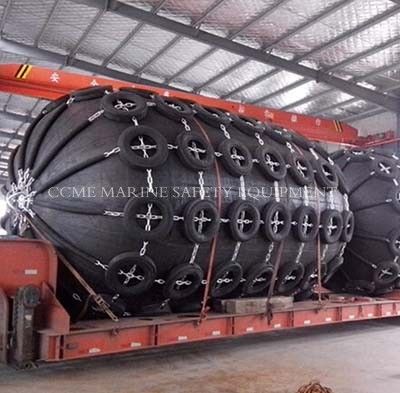

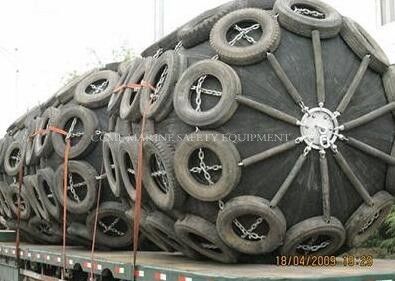

Marine Yokohama Rubber Fender Marine Pneumatic Rubber Fenders

Ampliación de imagen : Marine Yokohama Rubber Fender Marine Pneumatic Rubber Fenders

Datos del producto:

Lugar de origen:	jiangsu
Nombre de la marca:	CCME
Certificación:	LR,CCS,ABS,BV,DNV
Número de modelo:	CCM1

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	Negociable
Detalles de empaquetado:	Embalaje estándar
Tiempo de entrega:	10 dias
Condiciones de pago:	T/T o L/C
Capacidad de la fuente:	1000 piezas por mes

Contacto

Descripción detallada del producto

Tamaño:	según tus necesidades

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they arewidely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

1. Using compressed air as daming medium, the rubber fender can transform

flexibly under pressure, with large contact area, small reaction and absorb

large amount of energy

2. When berthing, the ship is almost at a certain angle, the pneumatic rubber

fender can realize contact in a certain angle by bringing full play to its performance.

3. Floating on the water surface, even the ship fluctuate and sway resulting from ebb

and waves, the Pneumatic rubber fender bears less friction, which would be no

harm to coating surface of ship and rubber fender.

4. Simple installation, siply installed on the wharf and anchor mast

Technical Parameter

No.	Size (Diameter x Length)	Initial pressure	Energy absorption	Reaction force
	mm x mm	MPa	KJ	KN
1	500 x 1000	0.05	6	64
2	600 x 1000	0.05	8	74
3	700 x 1500	0.05	17	137
4	1000 x 1500	0.05	32	182
5	1000 x 2000	0.05	45	257
6	1200 x 2000	0.05	63	297
7	1350 x 2500	0.05	102	427
8	1500 x 3000	0.05	153	579
9	1700 x 3000	0.05	191	639
10	2000 x 3500	0.05	308	875
11	2500 x 4000	0.05	663	1381
12	2500 x 5000	0.05	857	1835
13	2500 x 5500	0.05	943	2019
14	3000 x 5000	0.05	1050	2000
15	3000 x 6000	0.05	1312	2488
16	3300 x 4500	0.05	1175	1884
17	4500 x 9000	0.05	4752	5747
18	4500 x 12000	0.05	6473	7984
