Datos del producto:
Pago y Envío Términos:
|
| Rango de diámetro: | 0,8 m-2,0 m | Rango de longitud: | Entre 5 y 20 m |
|---|---|---|---|
| Material: | defensa de caucho natural | rango de capas: | 3-8 capas |

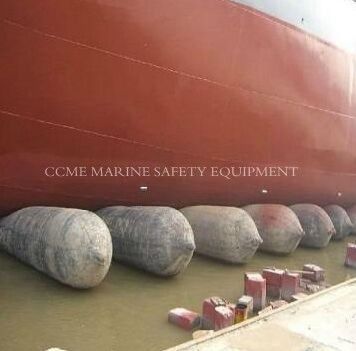

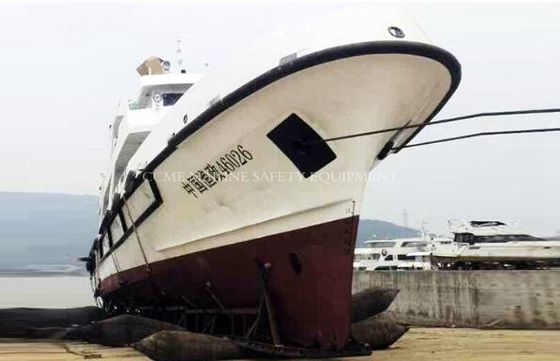

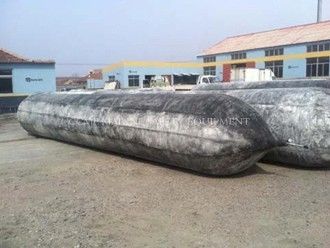

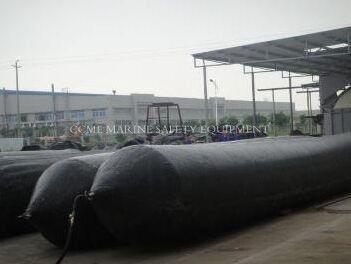

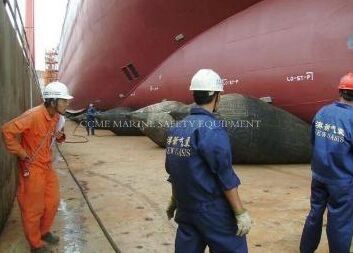

Marine airbags for ship landing and launching
|
Diameter (D): |
From 0.8m to 2.4m |
|
Effective Length (EL): |
From 6.0m to 20.0m |
|
Total Length (TL): |
From 7.0m to 21.5m |
|
Standard Number of Layers: |
Usually 4-10 layers |
|
Loading Capacity: |
About 10-40 T/M |
Guaranteed working pressure of shipping water rubber airbags :
|
type |
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
|
3 layers |
0.13MPA |
0.10MPA |
0.09MPA |
0.07MPA |
0.06MPA |
0.05MPA |
|
4 layers |
0.17MPA |
0.13MPA |
0.11MPA |
0.09MPA |
0.08MPA |
0.07MPA |
|
5 layers |
0.21MPA |
0.17MPA |
0.14MPA |
0.11MPA |
0.09MPA |
0.08MPA |
|
6 layers |
0.25MPA |
0.20MPA |
0.17MPA |
0.13MPA |
0.11MPA |
0.10MPA |
|
7 layers |
0.29MPA |
0.23MPA |
0.20MPA |
0.15MPA |
0.13MPA |
0.12MPA |
|
8 layers |
0.33MPA |
0.26MPA |
0.23MPA |
0.17MPA |
0.15MPA |
0.14MPA |
Accessories-for-Marine-Airbags
Relevant equipment and accessories are the necessary parts for airbags launching system. The necessary
accessories for airbags include air tightness swivel and airbags safety air inlet, these accessories will be
supplied with airbags together. The relevant equipments during Launching or Landing include Air Compressor,
Winch, Steel Wire Rope, Pulley System, Nylon Rope, Air Rubber Tube.
