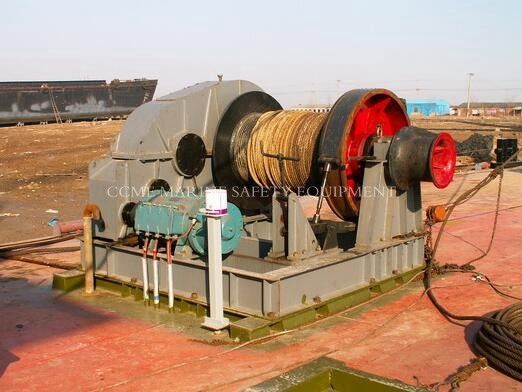

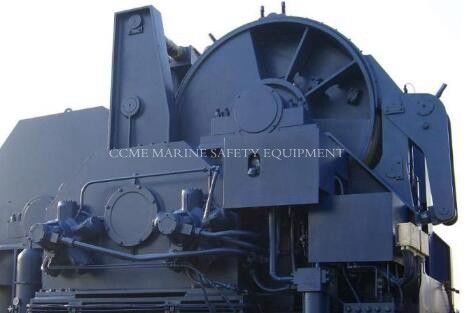

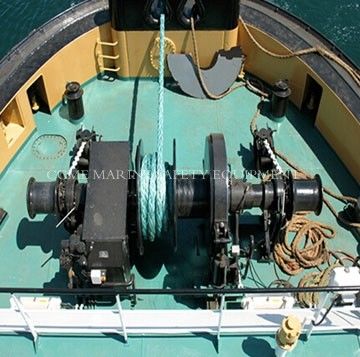

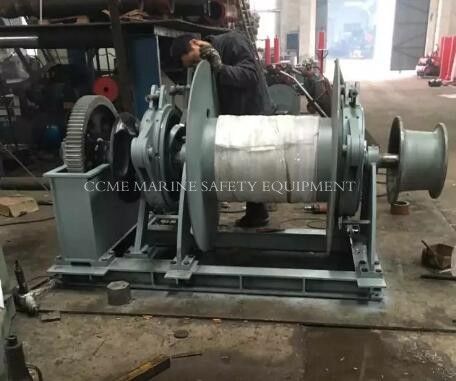

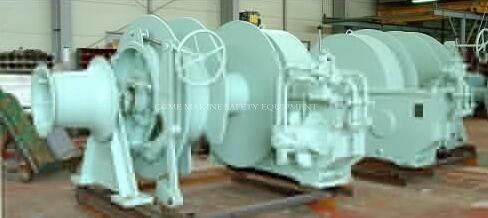

This kind winch is mainly used on boat for vertically lifting anchor or heavy things.
The winch can be driven by electric motor, hydraulic pump system and diesel engine.
With compact structure and all kinds of design, all the anchor winches get to the standard of ABS,LR,BC,CCS,LR,DNV,NK, etc.
Technical Parameters of the Electric Anchor Winch
Rated pull: 10kN to 1000kN
Rated speed: 4m/min to 15m/min
Drum capacity: ø8mm×150m to ø85mm×250m
Motor power for electric type: 3kW to 85kW
Motor power for hydraulic type: 5.5kW to 132kW
The aboving parameters only for reference.
|
Model |
Chain Dia. |
Working load |
Supporting load |
Working speed |
Warping load |
Warping speed |
Motor power |
Overall Dimensions |
Weight |
|
mm |
KN |
KN |
m/min |
|
m/min |
KW |
mm |
T |
|
|
CM-24 |
24 |
25-27 |
149-214 |
9 |
20 |
8.5 |
8.5/3.5 |
1400x1625x1050 |
3.3 |
|
CM-26 |
26 |
29-32 |
175-250 |
9 |
20 |
8.5 |
8.5/3.5 |
1400x1625x1050 |
3.3 |
|
CM-28 |
28 |
33-37 |
202-289 |
9 |
20 |
8.5 |
11/11/7.5 |
1600x1845x1150 |
3.8 |
|
CM-30 |
30 |
38-42 |
231-331 |
9 |
30 |
8.5 |
11/11/7.5 |
1600x1845x1150 |
3.8 |
|
CM-32 |
32 |
44-49 |
262-375 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
|
CM-34 |
34 |
49-55 |
295-422 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
|
CM-36 |
36 |
55-62 |
329-473 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
|
CM-38 |
38 |
61-69 |
365-522 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
|
CM-40 |
40 |
68-76 |
403-576 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
|
CM-42 |
42 |
75-84 |
442-630 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
