Marine External Fire Fighting System

External Fire Fighting System/ FiFi system

Including the following items

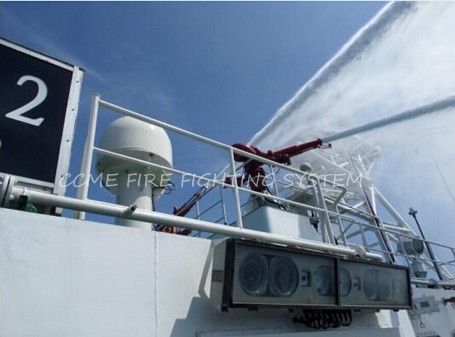

1. Fire monitor, Qty: 2sets

Pipe: water pipe and jet nozzle

Medium: water or AFFF

Capacity: Water: 1200m3/h

Operate type: Electrically operated,hand wheels for emergency manual

control with 3 phases motors 440V 60Hz IP56

Throw length: Water:120m approx.(at 11bar)

Water:45m approx.

Rotation: 340°

Elevation: -40°to +75°

Material : Stainless steel 304/ 316L

2. External fire pump , Qty :2 sets

Type: horizontal single stage,side inlet top outlet centrifugal pump

Medium: seawater

Capacity: 1200 m3/h

Pump head: 140m

Pump speed: 1800 r/min

3. Diesel engine , Qty:1 set

Type: KTA38-M1

Power: 746kw@1800r/min

Including: Coupling& Common Base

3. Control system, Qty:1 set

4.Electric operated butterfly valve

FiFi1 , FiFi2. FiFi3 , FiFi 1/2 , FiFI1/4 , Fire monitor , Fire pump are available .
