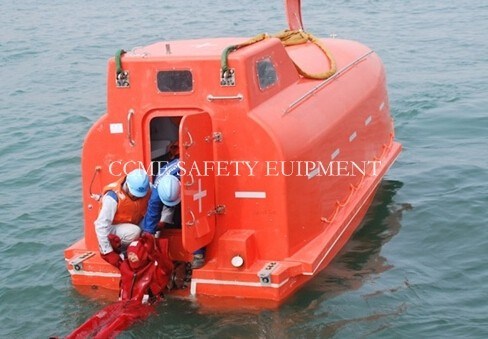

Marine Life boat Totally Enclosed Life Boats

30 persons fully enclosed Life boat with gravity davit

1.Capacity :30 persons
2.Length (main body ):6.7m

30 persons free  fall  fully enclosed  Life boat with davit

Principal dimension

   Length (main body )                             6.70 m

   Breadth (mld.)                                     2.75 m

   Height                                                    3.20m

   Occupants(82.5kg per person)             30 p

   Certificate height                                    18 m

   Slide way angle                                     30 deg

   Slideway length                                     8.0 m

Boat weight (light load)included with engine, fuel and equipment :    3675kg

Boat Weight (fully loaded):         6150.5kg

  Speed                                            ≥6 knots

Propulsion engine

  Engine type:

 380J-3 Diesel engine

 No. Of set :                              One (1) set

 Rate output  :                               20.6kw

Rate Rev:                                     2800r/min

Starting system                             Electric

Engine weight  :                           200kg

5) Propeller shaft and propeller

  Propeller shaft                               1 set

  Propeller                                        1 set

6) Fuel oil tank

  Material                                     Steel Plate

  Capacity                                    180 Liters
