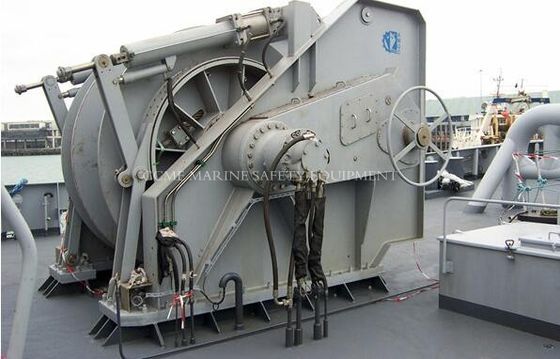

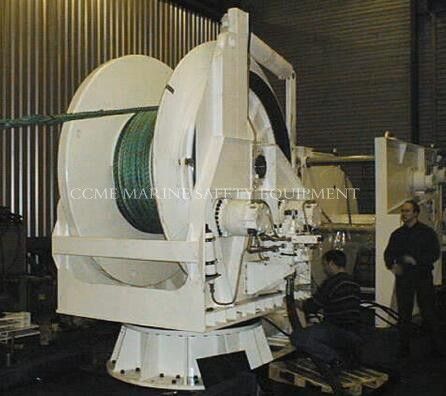

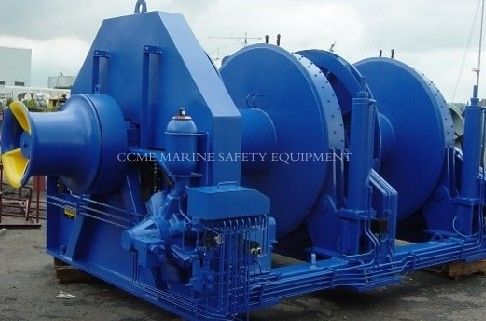

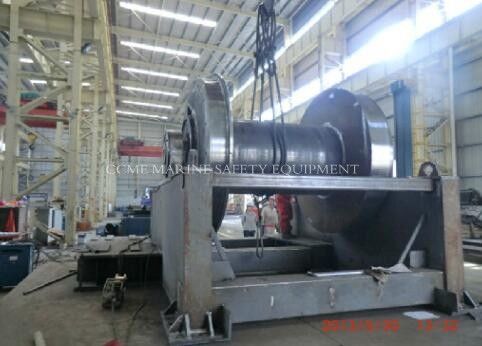

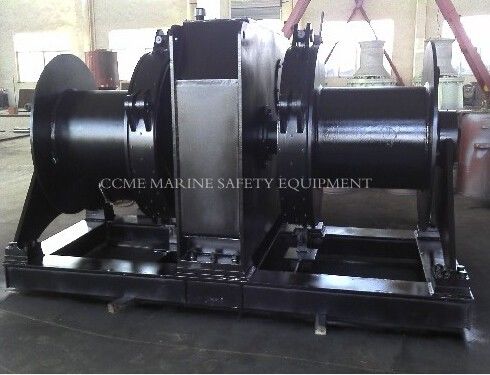

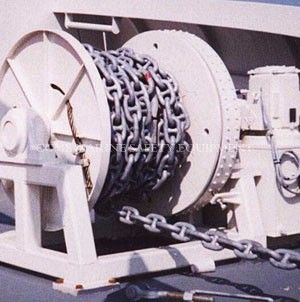

Marine Mooring Winch/Marine Towing Winch/Marine Anchor Winch
Marine Mooring Winch is a device of marine equipment usde during mooring operations to hols a boat in place at a pier or similar fixture. The mooring winch contains a drum around which sailors can wrap rope, chain, or cable, depending on the type of ship. It can be single drum and double drum.
Basic Information for Reference:
Driven Model: Electric or Hydraulic
Configuration: One or two mooring drums(or split drum), one or two warping heads, with or wothout warping head and gypsy.
Brake: Failsafe manual or hydraulic brake
Clutch: Manual or hydraulic operated
Controls: Local or remote control
| Mooring winch/Marine Electric mooring winch/Marine Hydraulic mooring winch/winch/ship mooring winch details |
| 1)Drive: electric / hydraulic |
| 2)High safety and good safty |
| 3)Chain Diameter: 30~100mm |
| 4)Chain speed: as per ISO standard |
| 5)Individual design and good quality. |
| 6)Technical support and spare parts. |
| 7)Approved by classification societies such as CCS, ABS, and BV etc. |
Rated pull: 10kN to 1000kN
Rated speed: 4m/min to 15m/min
Drum capacity: ø8mm×150m to ø85mm×250m
Motor power for electric type: 3kW to 85kW
Motor power for hydraulic type: 5.5kW to 132kW
