Datos del producto:
Pago y Envío Términos:
|
Advantage:
1.Unique profile design
2.Accuracy in fitting
Description:
Quick Details
Place of Origin:China (Mainland)
Brand Name:Tianhong
Model Number:Q105ZXS 02-11
Part:Hinge,Fixed by hinge
Type:Heavy/Medium/Light
Marine:Ship fitting
Handle Operation:Level/Wheel
OEM:Available
Dimension:200mm/250mm/300mm/350mm/400mm
Opening:Welded/Hinged
Packaging & Delivery
Packaging Details: Plywood pallet or Steel Structure with plastic film wrapped. Max. 6 sets per package.
Specifications
1, Marine welded porthole easy to install2, Aluminum porthole with deadlight3,Custom sizes are available4,ABS,CCS,BV,GL

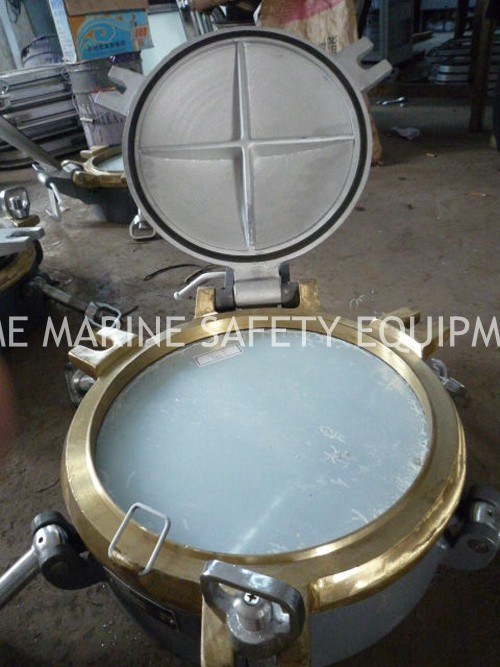

Marine Welded Porthole
Detailed Product Description
Dimension: 200mm/250mm/300mm/350mm/400mm
Classification:ABS,CCS,BV,GL etc.
Marine Welded Portholes' Parameters:
Type: Diameter (mm):200/250/300/350/400
Size of Clear: 200/250/300/350/400
Size of Openning: 253/308/363/413/463
Material: steel/steel stainless/aluminum/Brass
Classification: ABS,CCS,BV,GL etc.
Standard: Q105ZXS 02-11
Packing Details of Marine Welded Porthole
Plywood pallet or Steel Structure with plastic film wrapped. Max. 6 sets per package.
Optional Marine Welded PortholeModel:
Available in steel/steel stainless/aluminum/Brass
Type: Heavy/ Medium/ Light
Handle: Level type/ Wheel type
Glass standard: GB11946
Rubber gasket three years warranty
Screw: stainless
Surface before painting: sandblasting
Painting: Epoxy zinc rich primer coating or anode oxidation-treamentCustomize availableOEM service and Special requirement is available
